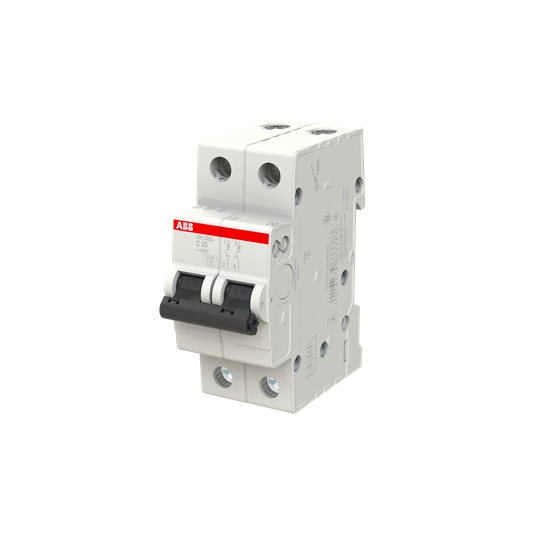

Disj modulaire ( non accessoiriable) 2P (4,5KA) SH202L-C25

(0 Commentaires)
Marque
ABB

Produit en interne


Prix
1.030,00 DA /Pc
Quantité
(2000 disponible)
Prix ​​total
Partager

Avis et notes

0 sur 5.0
(0 Commentaires)
Il n'y a pas encore d'avis sur ce produit.

Technical

Standards:IEC/EN 60898-1

Tripping Characteristic:C

Rated Operational Voltage:acc. to IEC 60898-1 400 V AC

Operational Voltage:Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 440 V

Rated Impulse Withstand Voltage (Uimp):4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV

Input Voltage Type:AC

Rated Current (In):25 A

Rated Short-Circuit Capacity:(AC) 4.5 kA

(400 V AC) 4.5 kA

Rated Conditional Short-Circuit Current (Inc):(400 V) 5 kA

Rated Frequency (f):50 / 60 Hz

Power Loss:6.4 W

at Rated Operating Conditions per Pole 3.2 W

Power Supply Connection:Arbitrary

Contact Position Indication:ON / OFF

Energy Limiting Class:3

Electrical Endurance:20000 AC cycle

Mechanical Endurance:20000 cycle

Number of Poles:2

Number of Protected Poles:2

Overvoltage Category:III

Tightening Torque:2 N·m

Actuator Type:Toggle

Screw Terminal Type:Cage Terminal

Actuator Marking:I / O

Actuator Material:Insulation Group II, Black, Sealable

Housing Material:Insulation Group II, RAL 7035

Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting Position:any

Recommended Screw Driver:Pozidriv 2

Accessories Available:No

Connecting Capacity:Conductor 25 / 25 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:acc. to DIN 43880 1

Terminal Type:Screw Terminals
