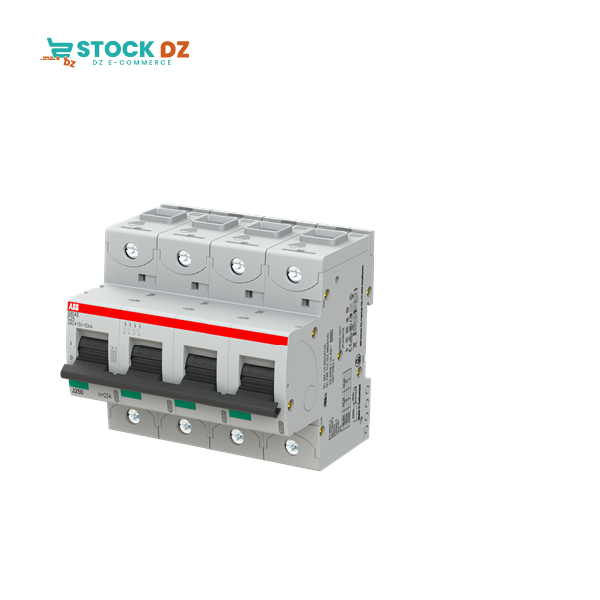

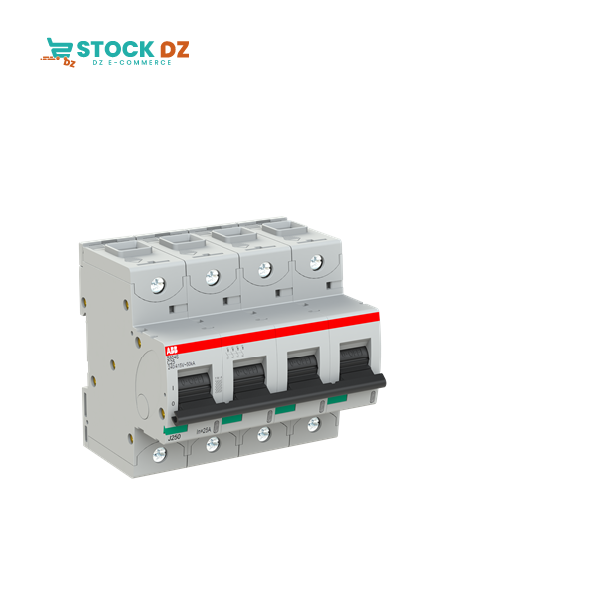

Technique

Normes et standards:IEC/EN 60947-2, IEC/EN 60898-1, UL 1077

Tripping Characteristic:C

Type of Residual Current:standard version

Tension nominale (Ur):acc. to IEC 60947-2 690 V AC

acc. to IEC 60947-2 500 V DC

acc. to IEC 60898-1 400 V AC

Tension:acc. to IEC 60947-2 690 V AC

acc. to IEC 60947-2 500 V DC

acc. to IEC 60898-1 400 V AC

Operational Voltage:Maximum 230/400 V AC

Minimum 12 V AC

Tension assignée d’isolement (Ui):acc. to IEC/EN 60664-1 690 V

Tension assignée de tenue aux chocs (Uimp):8 kV

Type de tension:AC/DC

Courant nominal (In):25 A

Courant nominal de fonctionnement (Ie):25 A

Rated Short-Circuit Capacity:(400 V) 25 kA

(230 V) 25 kA

Pouvoir assigné de coupure ultime en court-circuit (Icu):(240 / 415 V AC) 50 kA

(254 / 440 V AC) 30 kA

(400 / 690 V AC) 6 kA

(125 V DC) 30 kA

(230 V) 50 kA

Rated Conditional Short-Circuit Current (Inc):(230 V) 50 kA

(400 V) 50 kA

Pourvoir assigné de coupure de service en court-circuit (Ics):(240 / 415 V AC) 40 kA

(254 / 440 V AC) 22.5 kA

(400 / 690 V AC) 4 kA

(125 V DC) 30 kA

Fréquence (f):50 ... 60 Hz

Fréquence assignée (f):50...60 Hz

Power Loss:17.2 W

at Rated Operating Conditions per Pole 4.3 W

Contact Position Indication:ON / OFF / TRIP

Classe de limitation d'énergie:3

Electrical Endurance:10000 cycle

Mechanical Endurance:10000 cycle

Nombre de pôles:4

Number of Protected Poles:4

Catégorie de Surtension:IV

Couple de serrage:3.5 N·m

31 in·lb

Type de libération:C

Actuator Marking:I / O

Qualité du matériau:Insulation group I, RAL 7035

Montage sur rail DIN:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Type d'encastrement:Any

Recommended Screw Driver:Pozidriv 2

Accessories Available:Oui

Remarques:Connection from top and bottom

Connecting with CU only

IP40 in enclosure with cover

Cage terminal with captive screw

Connecting Capacity:Flexible 0...50 mm²

Rigid 0...70 mm²

Type de borne:Screw Terminals
