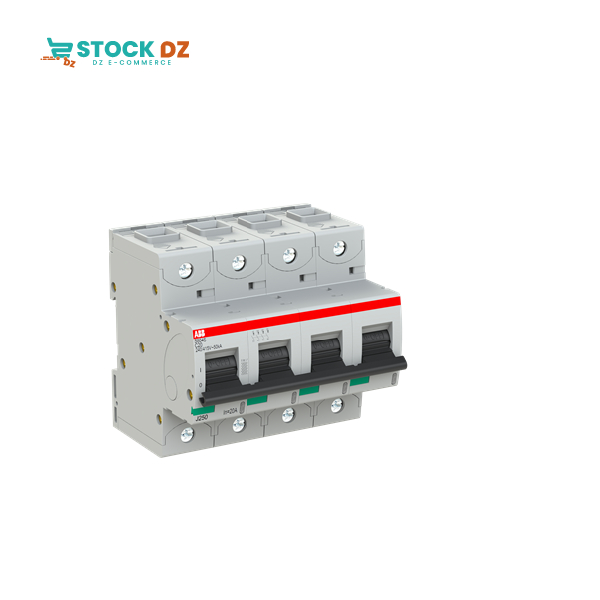

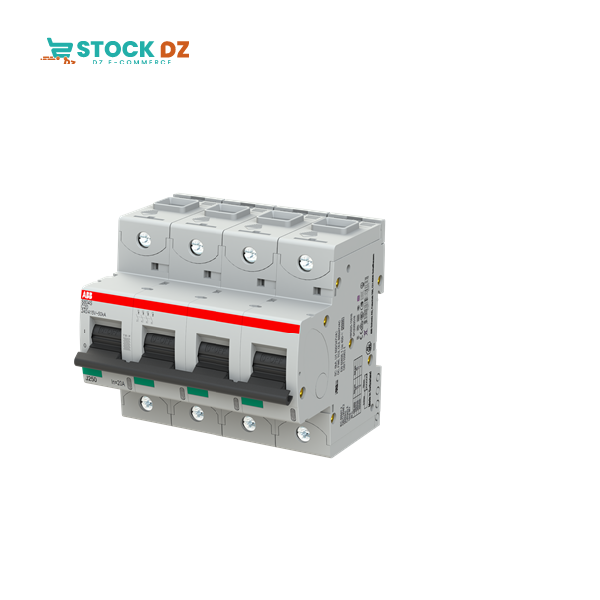

Technique

• Normes et standards:

  IEC/EN 60947-2, IEC/EN 60898-1, UL 1077


• Tripping Characteristic:

  C


• Type of Residual Current:

  standard version


• Tension nominale (Ur):

  acc. to IEC 60947-2 690 V AC
  acc. to IEC 60947-2 500 V DC
  acc. to IEC 60898-1 400 V AC


• Tension:

  acc. to IEC 60947-2 690 V AC
  acc. to IEC 60947-2 500 V DC
  acc. to IEC 60898-1 400 V AC


• Operational Voltage:

  Maximum 230/400 V AC
  Minimum 12 V AC


• Tension assignée d’isolement (Ui):

  acc. to IEC/EN 60664-1 690 V


• Tension assignée de tenue aux chocs (Uimp):

  8 kV


• Type de tension:

  AC/DC


• Courant nominal (In):

  20 A


• Courant nominal de fonctionnement (Ie):

  20 A


• Rated Short-Circuit Capacity:

  (400 V) 25 kA
  (230 V) 25 kA


• Pouvoir assigné de coupure ultime en court-circuit (Icu):

  (240 / 415 V AC) 50 kA
  (254 / 440 V AC) 30 kA
  (400 / 690 V AC) 6 kA
  (125 V DC) 30 kA
  (230 V) 50 kA


• Rated Conditional Short-Circuit Current (Inc):

  (230 V) 50 kA
  (400 V) 50 kA


• Pourvoir assigné de coupure de service en court-circuit (Ics):

  (240 / 415 V AC) 40 kA
  (254 / 440 V AC) 22.5 kA
  (400 / 690 V AC) 4 kA
  (125 V DC) 30 kA


• Fréquence (f):

  50 ... 60 Hz


• Fréquence assignée (f):

  50...60 Hz


• Power Loss:

  14 W
  at Rated Operating Conditions per Pole 3.5 W


• Contact Position Indication:

  ON / OFF / TRIP


• Classe de limitation d'énergie:

  3


• Electrical Endurance:

  10000 cycle


• Mechanical Endurance:

  10000 cycle


• Nombre de pôles:

  4


• Number of Protected Poles:

  4


• Catégorie de Surtension:

  IV


• Couple de serrage:

  3.5 N·m
  31 in·lb


• Type de libération:

  C


• Actuator Marking:

  I / O


• Qualité du matériau:

  Insulation group I, RAL 7035


• Montage sur rail DIN:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715


• Type d'encastrement:

  Any


• Recommended Screw Driver:

  Pozidriv 2


• Accessories Available:

  Oui


• Remarques:

  Connection from top and bottom
  Connecting with CU only
  IP40 in enclosure with cover
  Cage terminal with captive screw


• Connecting Capacity:

  Flexible 0...50 mm²
  Rigid 0...70 mm²


• Type de borne:

  Screw Terminals
