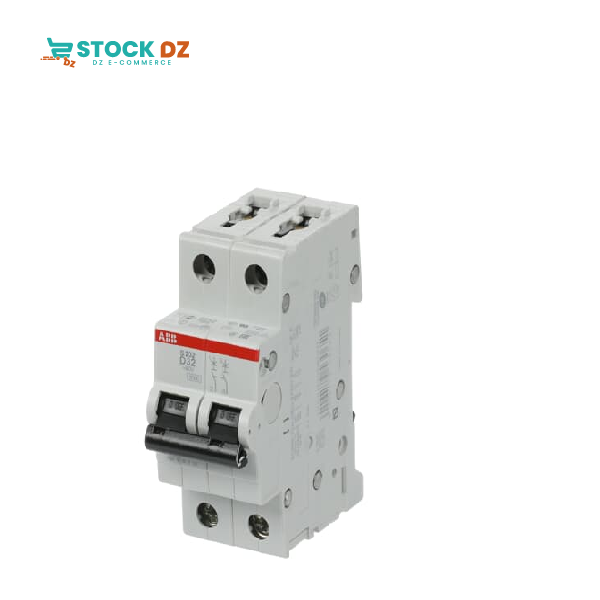

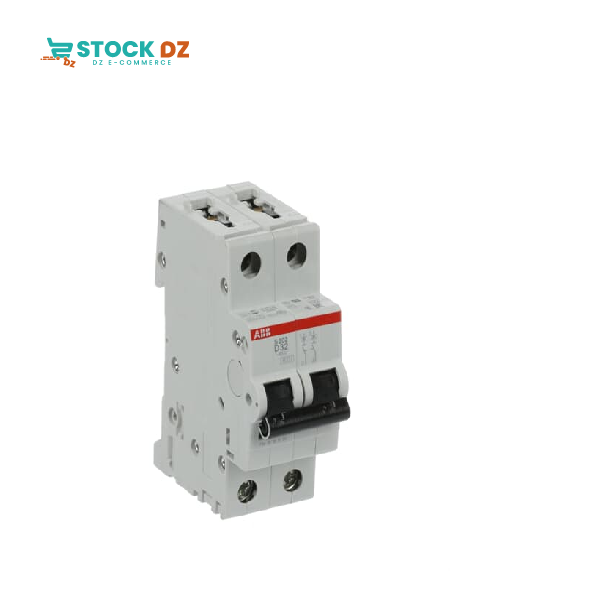

Technique

• Normes et standards:

  IEC/EN 60898-1
  IEC/EN 60947-2
  UL 1077


• Tripping Characteristic:

  D


• Tension:

  acc. to IEC 60898-1 400 V AC
  acc. to IEC 60947-2 440 V AC


• Operational Voltage:

  Maximum (Incl. Tolerance) 125 V DC
  Maximum (Incl. Tolerance) 440 V AC
  Minimum 12 V AC
  Minimum 12 V DC


• Tension assignée d’isolement (Ui):

  acc. to IEC/EN 60664-1 440 V


• Tension assignée de tenue aux chocs (Uimp):

  4 kV
  at 2000 m 5 kV
  at Sea Level 6.2 kV


• Dielectric Test Voltage:

  50/60 Hz, 1 min: 2 kV


• Type de tension:

  AC/DC


• Courant nominal (In):

  32 A


• Rated Short-Circuit Capacity:

  (AC) 6 kA
  (DC) 6 kA
  (400 V AC) 6 kA


• Pouvoir assigné de coupure ultime en court-circuit (Icu):

  (125 V DC) 10 kA
  (230 V AC) 20 kA
  (400 V AC) 10 kA
  (440 V AC) 10 kA
  (48 V DC) 20 kA


• Rated Conditional Short-Circuit Current (Inc):

  (230 V) 20 kA
  (400 V) 20 kA


• Pourvoir assigné de coupure de service en court-circuit (Ics):

  (230 V AC) 15 kA
  (400 V AC) 7.5 kA
  (440 V AC) 7.5 kA


• Fréquence assignée (f):

  50 / 60 Hz


• Power Loss:

  7.2 W
  at Rated Operating Conditions per Pole 3.6 W


• Power Supply Connection:

  Arbitrary


• Contact Position Indication:

  Red ON / Green OFF


• Electrical Endurance:

  10000 AC cycle


• Mechanical Endurance:

  20000 cycle


• Nombre de pôles:

  2


• Number of Protected Poles:

  2


• Catégorie de Surtension:

  III


• Couple de serrage:

  2.8 N·m


• Type de montage:

  DIN-Rail


• Screw Terminal Type:

  Failsafe Bi-directional Cylinder-lift Terminal


• Actuator Marking:

  I / O


• Actuator Material:

  Insulation Group II, Black, Sealable


• Qualité du matériau:

  Insulation Group II, RAL 7035


• Montage sur rail DIN:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715


• Type d'encastrement:

  any


• Recommended Screw Driver:

  Pozidriv 2


• Accessories Available:

  Oui


• Connecting Capacity:

  Busbar 10 / 10 mm²
  Flexible with Ferrule 0.75 ... 25 mm²
  Flexible 0.75 ... 25 mm²
  Rigid 0.75 ... 35 mm²
  Stranded 0.75 ... 35 mm²


• Installation Size:

  acc. to DIN 43880 1


• Wire Stripping Length:

  12.5 mm


• Type de borne:

  Screw Terminals
