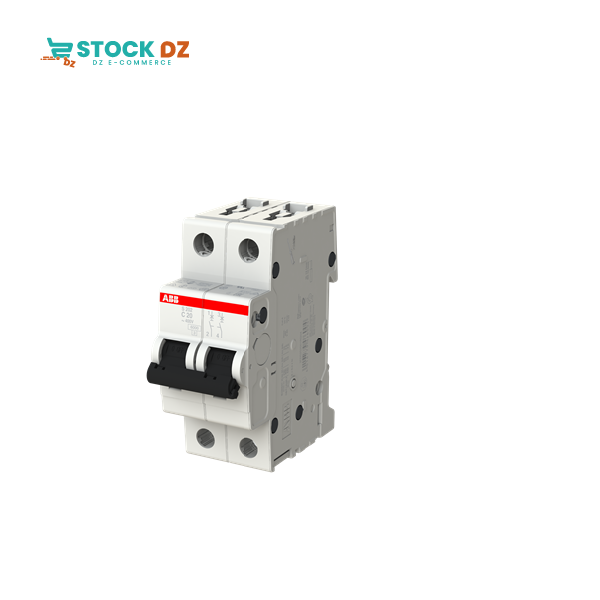

Technique

Normes et standards:IEC/EN 60898-1

IEC/EN 60947-2

UL 1077

Tripping Characteristic:C

Tension:acc. to IEC 60898-1 400 V AC

acc. to IEC 60947-2 440 V AC

Operational Voltage:Maximum (Incl. Tolerance) 125 V DC

Maximum (Incl. Tolerance) 440 V AC

Minimum 12 V AC

Minimum 12 V DC

Tension assignée d’isolement (Ui):acc. to IEC/EN 60664-1 440 V

Tension assignée de tenue aux chocs (Uimp):4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV

Type de tension:AC/DC

Courant nominal (In):20 A

Rated Short-Circuit Capacity:(AC) 6 kA

(DC) 6 kA

(400 V AC) 6 kA

Pouvoir assigné de coupure ultime en court-circuit (Icu):(125 V DC) 10 kA

(230 V AC) 20 kA

(400 V AC) 10 kA

(440 V AC) 10 kA

(48 V DC) 20 kA

Rated Conditional Short-Circuit Current (Inc):(230 V) 20 kA

(400 V) 20 kA

Pourvoir assigné de coupure de service en court-circuit (Ics):(230 V AC) 15 kA

(400 V AC) 7.5 kA

(440 V AC) 7.5 kA

Fréquence (f):50 Hz

Fréquence assignée (f):50 / 60 Hz

Power Loss:5 W

at Rated Operating Conditions per Pole 2.5 W

Power Supply Connection:Arbitrary

Contact Position Indication:Red ON / Green OFF

Classe de limitation d'énergie:3

Electrical Endurance:20000 AC cycle

Mechanical Endurance:20000 cycle

Nombre de pôles:2

Number of Protected Poles:2

Catégorie de Surtension:III

Couple de serrage:2.8 N·m

Type de montage:DIN-Rail

Screw Terminal Type:Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:I / O

Actuator Material:Insulation Group II, Black, Sealable

Qualité du matériau:Insulation Group II, RAL 7035

Montage sur rail DIN:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Type d'encastrement:any

Recommended Screw Driver:Pozidriv 2

Accessories Available:Oui

Connecting Capacity:Busbar 10 / 10 mm²

Flexible with Ferrule 0.75 ... 25 mm²

Flexible 0.75 ... 25 mm²

Rigid 0.75 ... 35 mm²

Stranded 0.75 ... 35 mm²

Installation Size:acc. to DIN 43880 1

Wire Stripping Length:12.5 mm

Type de borne:Screw Terminals
