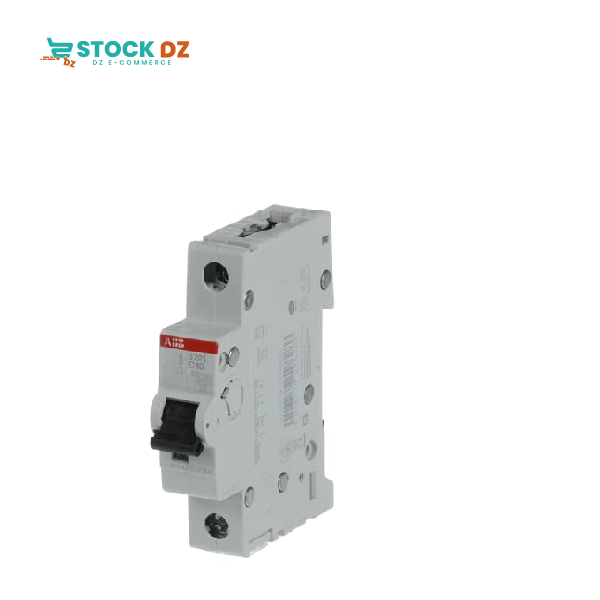

Technique

Normes et standards:IEC/EN 60898-1

IEC/EN 60947-2

Tripping Characteristic:C

Tension:acc. to IEC 60898-1 230 / 400 V AC

acc. to IEC 60947-2 230 V AC

Operational Voltage:Maximum (Incl. Tolerance) 253 V AC

Minimum 12 V AC

Tension assignée d’isolement (Ui):acc. to IEC/EN 60664-1 440 V

Tension assignée de tenue aux chocs (Uimp):4 kV

at 2000 m 5 kV

at Sea Level 6.2 kV

Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV

Type de tension:AC

Courant nominal (In):10 A

Rated Short-Circuit Capacity:(AC) 4.5 kA

(DC) 4.5 kA

(230 / 400 V AC) 4.5 kA

Pouvoir assigné de coupure ultime en court-circuit (Icu):(133 V AC) 10 kA

(230 V AC) 6 kA

Rated Conditional Short-Circuit Current (Inc):(230 V) 6 kA

(400 V) 6 kA

Pourvoir assigné de coupure de service en court-circuit (Ics):(133 V AC) 7.5 kA

(230 V AC) 4.5 kA

Fréquence assignée (f):50 / 60 Hz

Power Loss:2.1 W

at Rated Operating Conditions per Pole 2.1 W

Power Supply Connection:Arbitrary

Contact Position Indication:ON / OFF

Classe de limitation d'énergie:3

Electrical Endurance:20000 AC cycle

Mechanical Endurance:20000 cycle

Nombre de pôles:1

Number of Protected Poles:1

Catégorie de Surtension:III

Couple de serrage:2.8 N·m

Actuator Type:Toggle

Type de montage:DIN-Rail

Screw Terminal Type:Failsafe Bi-directional Cylinder-lift Terminal

Actuator Marking:I / O

Actuator Material:Insulation Group II, Black, Sealable

Qualité du matériau:Insulation Group I, RAL 7035

Montage sur rail DIN:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Type d'encastrement:any

Recommended Screw Driver:Pozidriv 2

Accessories Available:Oui

Connecting Capacity:Busbar 10 / 10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

Installation Size:acc. to DIN 43880 1

Wire Stripping Length:12.5 mm

Type de borne:Screw Terminals

Environnement

Température de l’air ambiant:Operation -25 ... +55 °C

Storage -40 ... +70 °C

Reference Ambient Air Temperature:30 °C

Indice de protection:IP20

Enclosure with Cover IP40

Degré de pollution:3
